PETZL Am’D PIN-LOCK

Asymmetrical aluminum carabiner, unlockable with a tool

The asymmetrical aluminium carabiner Am’D PIN-LOCK is intended for collective use. It ensures the connection of the user thanks to its PIN-LOCK locking system, which can only be opened by the user thanks to a specific unlocking tool. Am’D PIN-LOCK can be combined with the CAPTIV bar to facilitate the stress of the carabiner on the major axis, reduce its overturning and make it integral with the device.

Description

Detailed
description Carabiner intended for collective use:

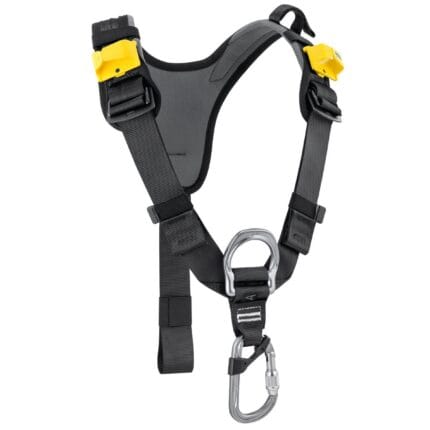

– to close a harness (in combination with the CAPTIV bar),
– to connect a continuous lifeline trolley.
It ensures the user’s connection:
– it can be combined with the CAPTIV bar to facilitate the stress of the carabiner on the major axis, reduce the risk of overturning and make it integral with the device,
– PIN-LOCK locking system that can only be unlocked with a specific tool to reduce the risk of the carabiner being opened by the user.
Easy to use by the user:
– Keylock system to prevent unintentional hooking of the carabiner,
– two unlocking tools: for frequent manoeuvres, a release pin that can be installed directly on a glove; for immediate and occasional use, a release ring that can be stored on a carabiner on the harness.
– H-shaped profile to protect the markings from abrasion and to ensure the best strength/lightness ratio.
Available in a carton of 10 pieces with the two unlocking tools or in a single pack with only the release ring.

Specifications
Materials: Aluminum
Certification(s): CE EN 362, CE EN 12275, EAC

PIN-LOCK
locking system Weight 80 g
Colour grey
Major axis resistance 27 kN
Minor axis resistance 8 kN
Open lever resistance 7 kN
Opening 25 mm
Warranty 3 years
