BaSt-Ing Cuneo for MaxVal Spindle

Original price was: CHF 1190.00.Current price is: CHF 1044.00.

Description

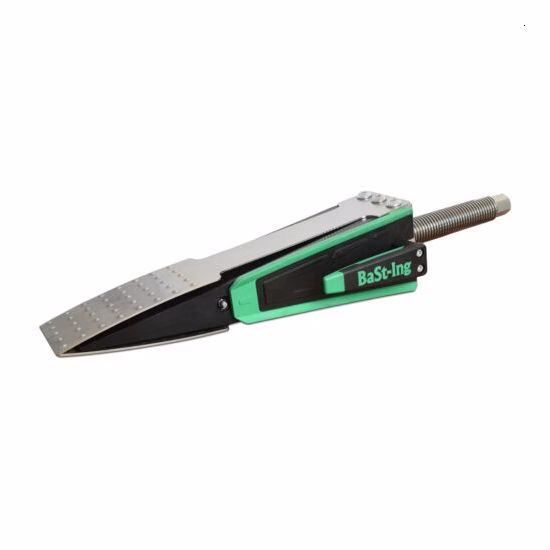

The BaSt-Ing MaxVal screw wedge is the largest screw wedge in the range and is specifically designed for hardwood.

The design of the MaxVal focuses on maximum lifting force and a robust structure.

The drive screw is made of highly tempered CrMo steel with a thickness of 32 mm. The MaxVal is operated with a 24 mm wrench. The drive spindle of the MaxVal is partially integrated, so half of the spindle is protected inside the wedge tip. The second, shorter half of the spindle protrudes 140 mm from the felling wedge.

Technical Data

  • Lifting force: 30 t
  • Wedge angle: 14°
  • Weight: 6.0 kg
  • Impact driver with 1000 Nm
  • Length: 52 cm
  • Wedge width: 8 cm
  • Total width: 13 cm
  • Lifting height: 8 cm
  • Wrench opening: 24 mm
  • Spindle diameter: 32 mm
  • Spindle material: highly tempered CrMo steel
  • Thread pitch: 6 mm
  • Made in Germany
